Module 2, Practical 3

In this practical we will start working with algorithm complexity through practical examples.

Complexity

The complexity of an algorithm can be defined as a function mapping the size of the input to the time required to get the result. This is also called the cost function.

There exist several asymptotic (time-measuring) notations. Informally they are:

• Big Omega (best case)

• Big Theta (average case)

• Big O (worst case)

The upper-bound complexity O (the big-Oh) is generally the most interesting to analyze. In this practical we will work with this notation considering several Python code samples.

Big O is a formal notation that describes the behaviour of a function when the argument tends towards the maximum input. Big O takes the upper bound, that is, it considers the worst-case results, the worst execution of the algorithm.

Instead of saying the input is 10 billion, or infinite, we say the input is n size. The exact size of the input doesn’t matter, we only care of how our algorithm performs with the worst input. This approach allows to still work with Big O even if we do not know the exact size of the input during the code execution.

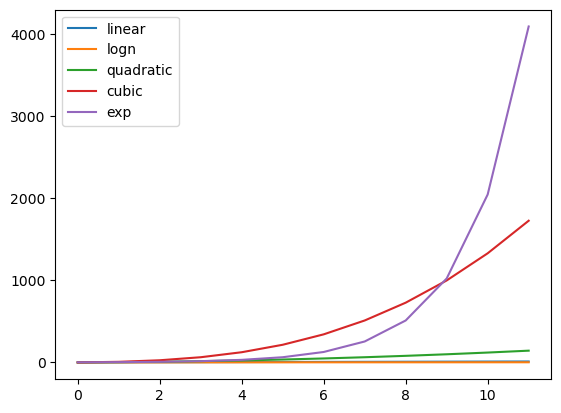

Big O is easy to read once we learn the different order of growth:

import math
import pandas as pd
import matplotlib.pyplot as plt

inputList = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12]

linear  = [n for n in inputList]
logn  = [math.log(n) for n in inputList]
quadratic  = [n*n for n in inputList]
cubic = [n*n*n for n in inputList]
exponential = [2**n for n in inputList]

functDict = {'linear': linear, "logn": logn, "quadratic": quadratic, "cubic": cubic, "exp": exponential}
functDf = pd.DataFrame(functDict)
functDf.plot()
plt.show()
plt.close()

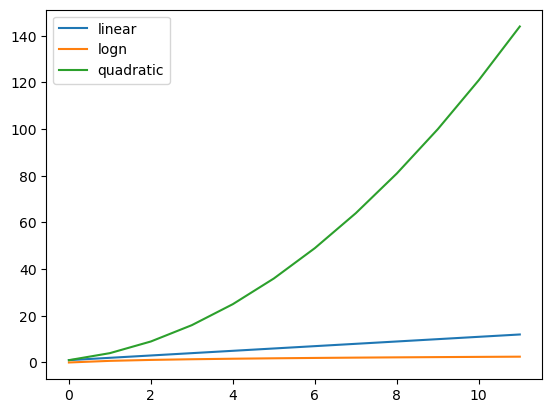

functDf[["linear", "logn", "quadratic"]].plot()
plt.show()
plt.close()

Python built-in data structures and relative functions have different time complexity. A comprehensive list is available at this link.

Example 1

Determine the complexity of these two functions:

def printList(inputList):
    for item in inputList:
        print(item)

printList([4, 5, 6, 8])

print("---------------------")

def printListBothDirections(inputList):
    print("Forward:")
    for item in inputList:
        print(item)
    print("Reverse:")
    for item in inputList[::-1]:
        print(item)

printListBothDirections([4, 5, 6, 8])

4
5
6
8
---------------------
Forward:
4
5
6
8
Reverse:
8
6
5
4

Show/Hide Complexity

Both printList and printListBothDirections are O(n), so their complexity is linear with respect to the processed list lenght. To be precise, printListBothDirections is O(n+n) = O(2n), but since we’re looking towards infinite-size inputs, the double of infinite is still infinite.

Example 2

Determine the complexity of a function that computes the highest value for each pair of values from two input lists l1 and l2.

def computeHighest(l1, l2):
    for i1 in l1:
        for i2 in l2:
            if i1 > i2:
                print("Value {} in l1 greater than value {} in l2".format(i1, i2))

computeHighest([4, 5, 6, 8], [12,1,42,11])

Value 4 in l1 greater than value 1 in l2
Value 5 in l1 greater than value 1 in l2
Value 6 in l1 greater than value 1 in l2
Value 8 in l1 greater than value 1 in l2

Show/Hide Complexity

The function is quadratic, O(n^2), as we do n iterations (one per each element in l1) times n iterations (one per each element in l2).

Example 3

Determine the complexity of the following functions, performing multiple tasks.

def myFunction(items):

    for i in reversed(range(1, 5)):
        print ("{} seconds left".format(i))
    print("boom!\n--------------")

    itemsString = ""
    for item in items:
        itemsString += ">{}".format(item)
    print(itemsString[1:])

    print("--------------")

    pairwiseProducts = []
    for item1 in items:
        for item2 in items:
            if (item1 == item2):
                print("I'm in the diagonal {} {}".format(item1, item2))
            pairwiseProducts.append(item1*item2)

myFunction([4, 5, 6, 8, 12, 14])

4 seconds left
3 seconds left
2 seconds left
1 seconds left
boom!
--------------
4>5>6>8>12>14
--------------
I'm in the diagonal 4 4
I'm in the diagonal 5 5
I'm in the diagonal 6 6
I'm in the diagonal 8 8
I'm in the diagonal 12 12
I'm in the diagonal 14 14

Show/Hide Complexity

The complexity of this function can be determined by breaking it down in its different parts:

• the first loop does 4 iterations, regardless of the input. It is constant, so O(4).

• the second loop does n iterations, where n is the size of the input. It is linear, so O(n).

• the last loop does n*n iterations, where n is the size of the input. It is quadratic, so O(n^2).

Therefore, by summing O(5) + O(n) + O(n^2) we can say that the function is O(n^2), which “dominates” the other terms.

Example 4

Determine the complexity of the listHalver function that returns every division by 2 of the inputList parameter until it’s empty, and the sliceStepper function that uses listHalver function with lists of length n...1.

def listHalver(inputList):
    sliced = inputList
    while len(sliced) >= 2:
        sliced = sliced[:int(len(sliced)/2)]
        print(sliced)

listHalver([1, 2, 3, 4, 5, 6, 7, 8, 9])
print("------------")

def halverStepper(maxListLength):
    for step in reversed(range(1, maxListLength)):
        listHalver(list(range(1, step)))

halverStepper(12)

[1, 2, 3, 4]
[1, 2]
[1]
------------
[1, 2, 3, 4, 5]
[1, 2]
[1]
[1, 2, 3, 4]
[1, 2]
[1]
[1, 2, 3, 4]
[1, 2]
[1]
[1, 2, 3]
[1]
[1, 2, 3]
[1]
[1, 2]
[1]
[1, 2]
[1]
[1]
[1]

Show/Hide Complexity

The listHalver function needs to look at a smaller subset of the data at every step, and is therefore logarithmic, O(log(n)). The halverStepper function does n times an O(log(n)) operation (listHalver), and is therefore O(nlog(n)).

Exercises

1. Let M be a square matrix - a list containing n lists, each of them of size n. Return the computational complexity of function fun() with respect to n:

def fun(M):
    for row in M:
        for element in row:
            print(sum([x for x in row if x != element]))

Show/Hide Complexity

O(n^3), because the complexity is n for the list comprehension, times n for the inner for cycle, times n for the outer for cycle

2. Given a list L of n elements, please compute the asymptotic computational complexity of the following function, explaining your reasoning.

def my_fun(L):
    n = len(L)
    tmp = []
    for i in range(int(n)):
        tmp.insert(0,L[i]-L[int(n/3)])
    return sum(tmp)

Show/Hide Complexity

It mainly depends on the implementation of the list (we will see in the following practicals what this means). One possbile answer could be:

• len(L) has a constant complexity O(1)

• the for loop costs n times the head insertion in the list tmp, if this requires a shift right of all the previously inserted elements, this could be in total O(n^2)

• the final sum costs O(n)

This makes a quadratic overall asymptotic complexity.

3. Given a sorted list alist of n elements, please compute the asymptotic computational complexity of the following function implementing binary search, explaining your reasoning.

def binarySearch(alist, item):
    first = 0
    last = len(alist)-1
    found = False

    while first <= last and not found:
        midpoint = (first + last)//2
        if alist[midpoint] == item:
            found = True
        else:
            if item < alist[midpoint]:
                last = midpoint-1
            else:
                first = midpoint+1

    return found

Show/Hide Complexity

The binary search divides by two the lenght of the list at each iteration, this maks the asymptotic complexity to be 0(log(n)).

4. Please compute the asymptotic computational complexity of the following code, that computes the Fibonacci sequence according to the following formula:

• If n is even, then k = n/2 and F(n) = [2*F(k-1) + F(k)]*F(k)

• If n is odd, then k = (n + 1)/2 and F(n) = F(k)*F(k) + F(k-1)*F(k-1).

# Create an array of length n for memoization (we will see later what memoization is...)
n = 10
f = [0] * n

# Returns n'th fibonacci number using table f[]
def fib(n) :
    # Base cases
    if (n == 0) :
        return 0
    if (n == 1 or n == 2) :
        f[n] = 1
        return (f[n])

    # If fib(n) is already computed (thanks to memoization)
    if (f[n]):
        return f[n]

    # Applying above formula [Note value n&1 is 1
    # if n is odd, else 0.
    if((n & 1)):
        # (n & 1) is 1 when n is odd, 0 otherwise
        k = (n + 1) // 2
        f[n] = (fib(k) * fib(k) + fib(k-1) * fib(k-1))
    else :
        k = n // 2
        f[n] = (2*fib(k-1) + fib(k))*fib(k)

    return f[n]


# main code
for i in range(n):
    print(fib(i), end=' ') # avoids to add a new line at each iteration
print('') # to go to new line at the end

0 1 1 2 3 5 8 13 21 34

Show/Hide Complexity

Thanks to memoization, the access to the already computed Fibonacci numbers has constant complexity (O(1)). This makes the asymptotic complexity of the function fib to be logarithmic (O(log (n))). The function fib is then called n times. This makes the overall complexity to be O(n log(n)).

5. Please compute the asymptotic computational complexity of the function subsets, that computes all the subsets of a set of elements.

Subsets of {a,b}: {(), ('b',), ('a',), ('b', 'a')}
Subsets of {a,b,c}: {(), ('b',), ('a',), ('c',), ('b', 'a'), ('b', 'c'), ('a', 'c'), ('b', 'a', 'c')}

from itertools import chain, combinations

def subsets(elementSet):
    return set(chain.from_iterable(combinations(elementSet, r) for r in range(len(elementSet)+1)))

print('Subsets of {a,b}:', subsets({'a','b'}))
print('Subsets of {a,b,c}:', subsets({'a','b','c'}))

Subsets of {a,b}: {('b',), ('a', 'b'), (), ('a',)}
Subsets of {a,b,c}: {('c',), ('a', 'c'), ('a',), ('b', 'c'), ('b',), ('a', 'b'), (), ('a', 'b', 'c')}

Show/Hide Complexity

What’s important to notice here is that the number of subsets grows exponentially with the number n of the elements on the original set. This makes the overall complexity to be exponential O(2^n).
